Jib Cranes for Precise Material Handling
Precision Lifting. Ergonomic Design. Maximum Efficiency.
Level’s jib cranes deliver precise, ergonomic lifting for workstations, production lines, and localized material handling applications. With 360-degree rotation capability and multiple mounting options, our jib cranes maximize productivity while reducing worker fatigue and improving safety in targeted work areas.
Benefits
Key Benefits
360° Coverage
Complete rotational access for maximum workspace efficiency
Compact Footprint
Minimal floor space requirements for tight areas
Mounting Options
Floor, wall, and ceiling mounted configurations
Quick Installation
Minimal facility modification required for most applications
Overview
What are Jib Cranes?
Product Description

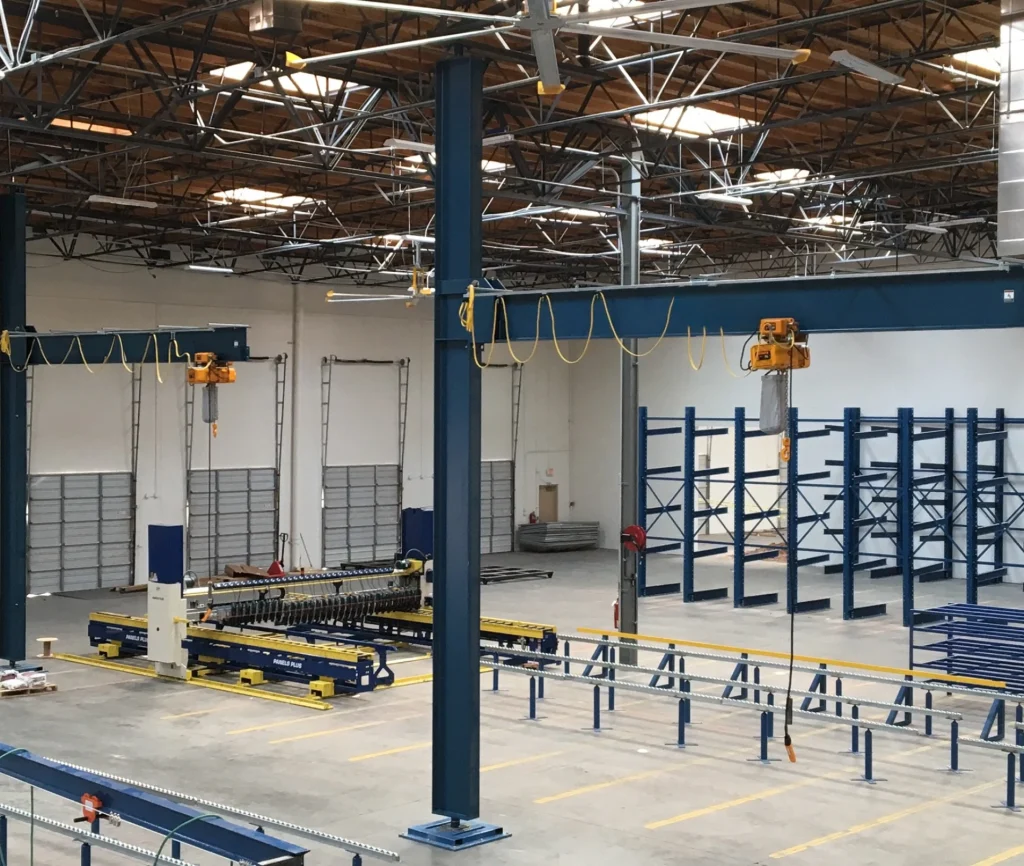

Jib crane systems are rotating lifting solutions that consist of a horizontal boom (jib) mounted to a vertical mast, providing precise material handling within a circular work area. These versatile cranes excel in applications requiring repetitive lifting, precise positioning, and ergonomic load handling in confined or dedicated work spaces.
Why Choose Level Jib Cranes?
Our jib cranes are engineered to enhance workplace productivity while prioritizing operator safety and comfort. From lightweight workstation applications to heavy-duty industrial installations, our comprehensive range of jib cranes provides the perfect solution for localized material handling challenges across diverse industries.
Key Features
Superior Structural Design
Freestanding Designs
Freestanding, portable base and foundationless configurations
Wall-Mounted Configuration
Space-saving designs utilizing existing building structure for support
Mast-Mounted Systems
Attach to existing columns or structural supports for optimal workspace layout
Control Systems
Full 360° Rotation
Complete circular coverage eliminates dead zones and maximizes workspace efficiency
Smooth Operation
Engineered for effortless rotation under load
Positioning Options
Manual or motorized rotation with precise load placement capability
Safety Features
Variable Speed Hoists
Electric chain and wire rope hoist options for precise load control
Ergonomic Controls
Pendant or wireless remote operation reduces operator fatigue and improves safety
Load Block Positioning
Precision positioning systems for repetitive operations and exact placement
Performance Options
Heavy-Duty Design
Welded steel construction rated for continuous industrial duty cycles
Corrosion Protection
Industrial paint systems and galvanized finishes for long-term durability
Safety Compliance
OSHA and ANSI compliant designs with comprehensive safety documentation
Specifications Table

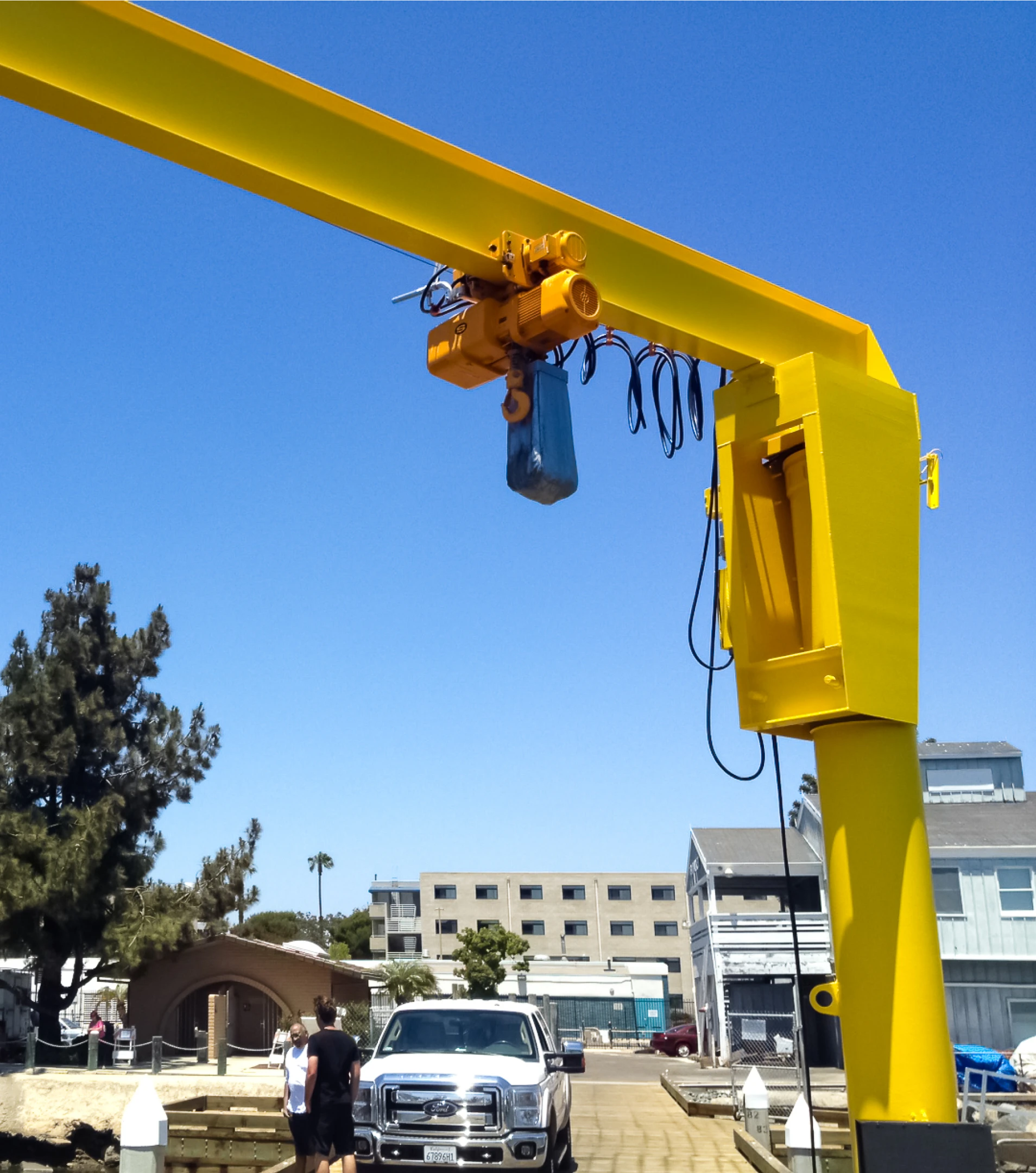

Freestanding Jib Cranes
Capacity
0.25-10
tons
0.5, 1, 2, 3, 5 ton
Boom Length
8-30
feet
Custom lengths available
Rotation
360°
full rotation
Manual or motorized
Specification
Lift Height
Hoist Speed
Rotation Speed
Foundation
Range
8 – 30 feet
8 – 32 FPM
Manual or 0.5-2 RPM
Calculated per application
Standard Options
Under boom clearance
2-speed or VFD
Variable frequency drive
Engineering included
Wall-Mounted Jib Cranes
Capacity
0.25-5
tons
0.5, 1, 2, 3, 5 ton
Boom Length
6-20
feet
Space-optimized designs
Rotation
180°-200°
coverage
Wall clearance dependent
Specification
Lift Height
Hoist Speed
Wall Loading
Mounting
Range
8 – 20 feet
8 – 32 FPM
Calculated per application
Through-bolt or welded
Standard Options
Building height dependent
2-speed or VFD
Engineering analysis
Structural requirements
Mast-Mounted Jib Cranes
Capacity
0.25-5
tons
0.5, 1, 2, 3, 5 ton
Boom Length
6-25
feet
Multiple boom options
Rotation
360°
or partial
Obstruction dependent
Specification
Lift Height
Mast Diameter
Mounting Height
Range
8 – 25 feet
6″ – 12″
8 – 40 feet
Standard Options
Mast height variable
Based on capacity/reach
Column attachment point
Specifications Table
Freestanding Jib Cranes
Capacity
Range
0.25-10
tons
Standard Options
0.5, 1, 2, 3, 5 ton
Boom Length
Range
8-30
feet
Standard Options
Custom lengths available
Rotation
Range
360°
full rotation
Standard Options
Manual or motorized
Lift Height
Range
8 – 30
feet
Standard Options
Under boom clearance
Hoist Speed
Range
8 – 32
FPM
Standard Options
2-speed or VFD
Rotation Speed
Range
Manual or 0.5-2
RPM
Standard Options
Variable frequency drive
Foundation
Range
Calculated per application
Standard Options
Engineering included
Wall-Mounted Jib Cranes
Capacity
Range
0.25-5
tons
Standard Options
0.5, 1, 2, 3, 5 ton
Boom Length
Range
6-20
feet
Standard Options
Space-optimized designs
Rotation
Range
180°-200°
coverage
Standard Options
Wall clearance dependent
Lift Height
Range
8 – 20
feet
Standard Options
Building height dependent
Hoist Speed
Range
8 – 32
FPM
Standard Options
2-speed or VFD
Wall Loading
Range
Calculated per application
Standard Options
Engineering analysis
Mounting
Range
Through-bolt or welded
Standard Options
Structural requirements
Mast-Mounted Jib Cranes
Capacity
Range
0.25-5
tons
Standard Options
0.5, 1, 2, 3, 5 ton
Boom Length
Range
6-25
feet
Standard Options
Multiple boom options
Rotation
Range
360°
or partial
Standard Options
Obstruction dependent
Lift Height
Range
8 – 25
feet
Standard Options
Mast height variable
Mast Diameter
Range
6″ – 12″
Standard Options
Based on capacity/reach
Mounting Height
Range
8 – 40
feet
Standard Options
Column attachment point
Configuration Options
Floor-Mounted Systems
Free-Standing Jib Cranes
- Capacities: 250 lbs – 5 tons
- Boom lengths: 8-20 feet
- Independent foundation installation
- 360-degree rotation capability

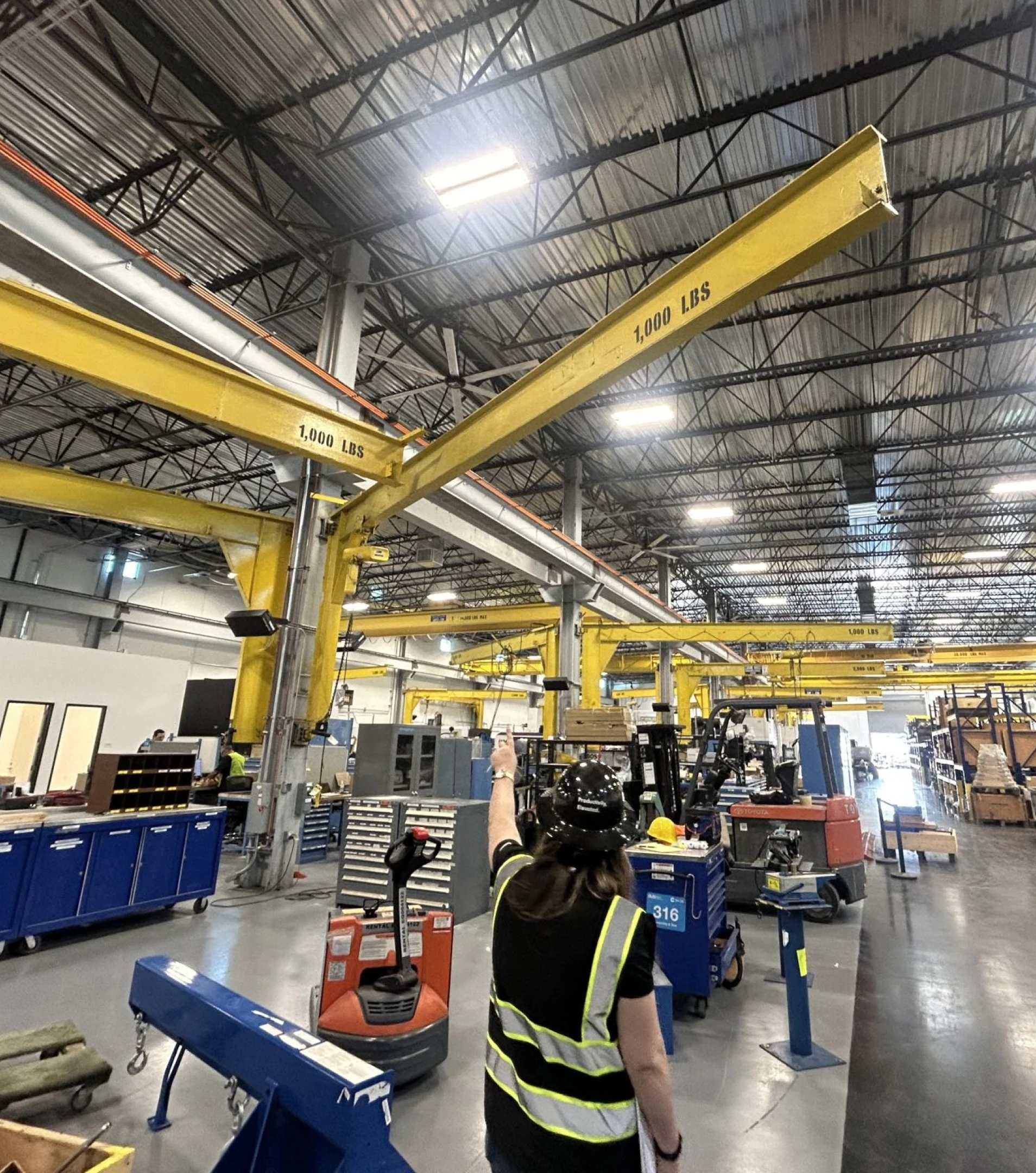

Mast-Style Jib Cranes
- Capacities: 125 lbs – 2 tons
- Boom lengths: 6-16 feet
- Bolt-down or foundation mounted
- Ideal for workstation applications
Wall-Mounted Systems
Wall Bracket Jib Cranes
- Capacities: 125 lbs – 2 tons
- Boom lengths: 8-20 feet
- Space-efficient wall mounting
- 180-degree rotation standard

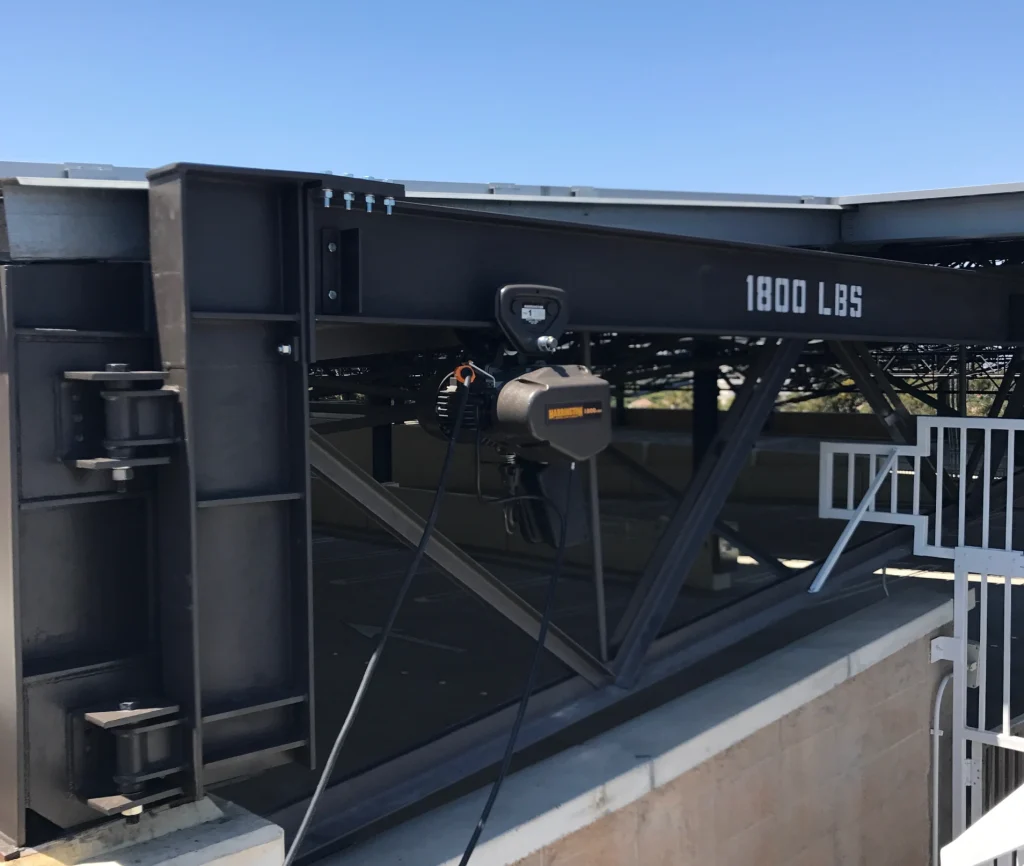

Cantilever Jib Cranes
- Capacities: 250 lbs – 3 tons
- Boom lengths: 10-25 feet
- Extended reach capabilities
- Structural wall mounting required
Ceiling Mounted Systems
Ceiling-Suspended Jib Cranes
- Capacities: 125 lbs – 1 ton
- Boom lengths: 6-14 feet
- Minimal floor space requirements
- Ideal for congested work areas
I-Beam Mounted Systems
- Integration with existing beam structure
- Quick installation and setup
- Cost-effective for retrofit applications
Specialized Configurations
Articulating Jib Cranes
- Multi-joint boom design
- Enhanced positioning flexibility
- Ideal for complex work areas

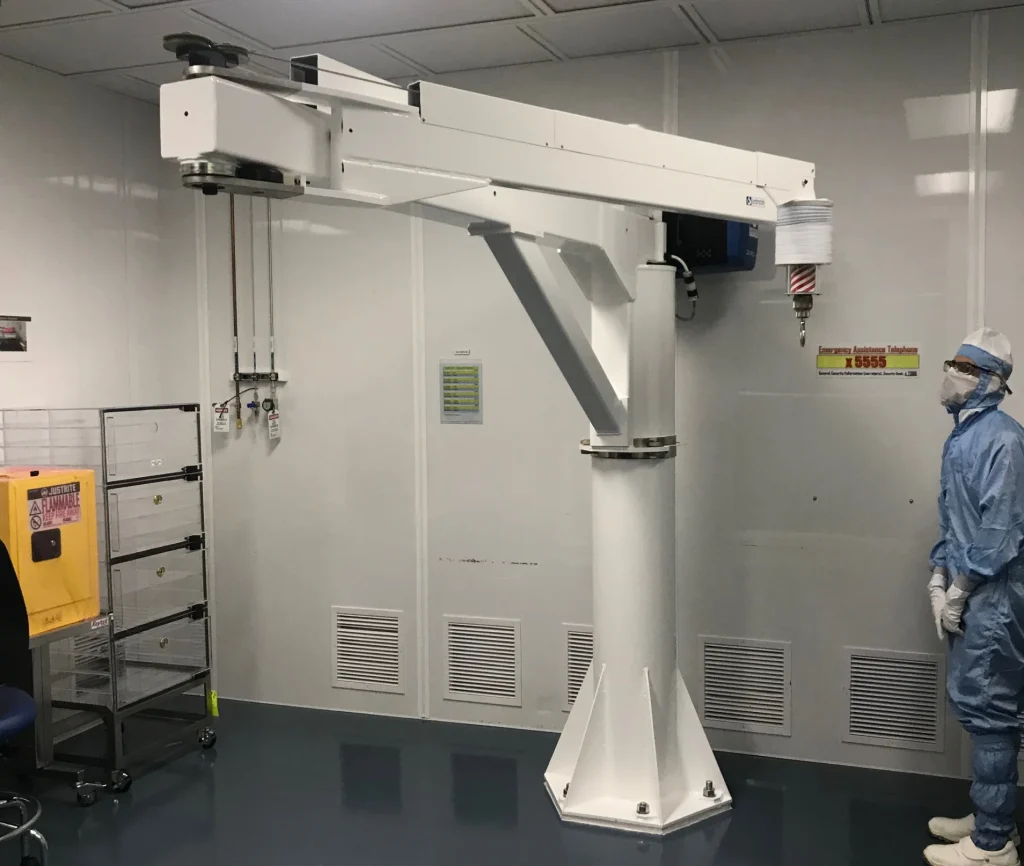

Clean Room Jib Cranes
- Stainless steel construction
- Sanitary design for food/pharma
- Easy cleaning and maintenance
Why We’re Different
Solutions Focused
Exclusive focus on custom crane project excellence
Rapid Response
Swift execution on your timeline
Nationwide Installation
California engineering with nationwide installation capability
Service Freedom
Complete service independence after commissioning
Travel Included
Zero travel premiums regardless of location
Project Specialists
Specialized project expertise, not service-company generalists
Applications
Industries Served

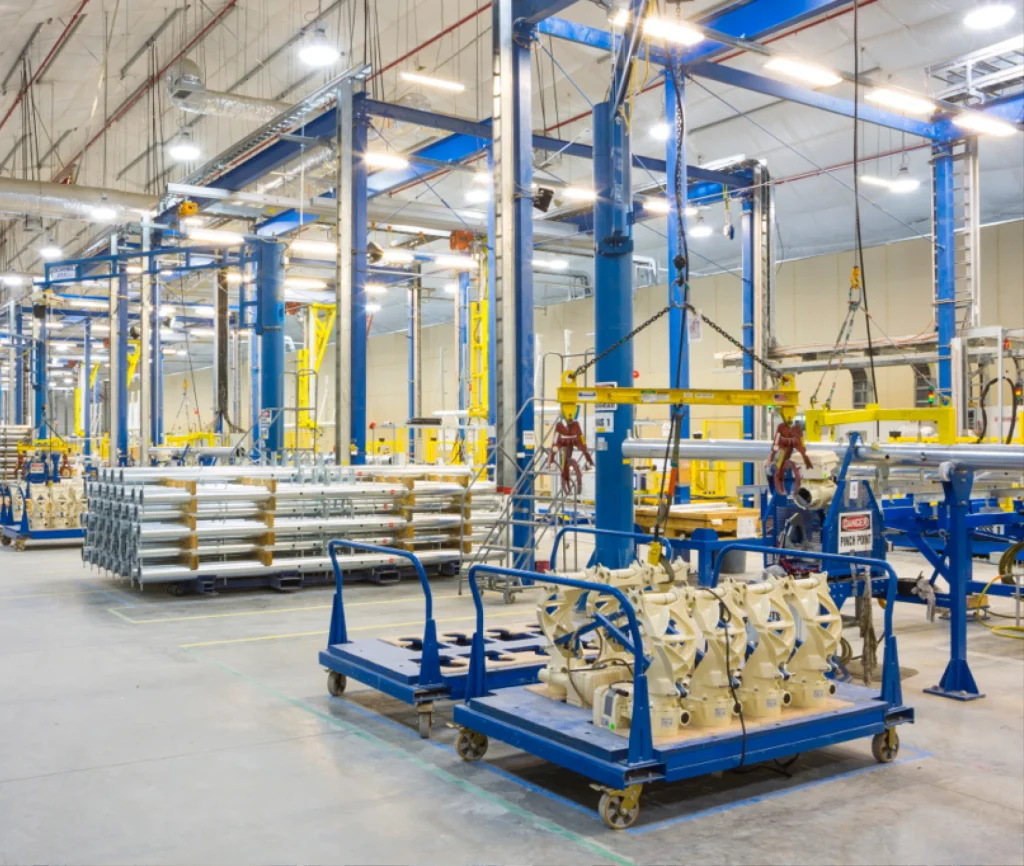

Manufacturing & Assembly
Precision material handling for production lines, assembly operations, and quality control processes in automotive, aerospace, and general manufacturing facilities.
Steel & Metal Processing
Heavy-duty bridge cranes for steel mills, metal fabrication shops, and processing facilities requiring high-capacity lifting and precise load positioning.
Warehousing & Distribution
Efficient material handling solutions for loading docks, storage facilities, and distribution centers requiring flexible, high-throughput operations.
Power Generation
Specialized bridge crane systems for power plants, including nuclear facilities, requiring precise positioning and enhanced safety protocols.
Aerospace & Defense
Critical lifting applications for aircraft manufacturing, maintenance hangars, and defense contractors requiring precision and reliability.

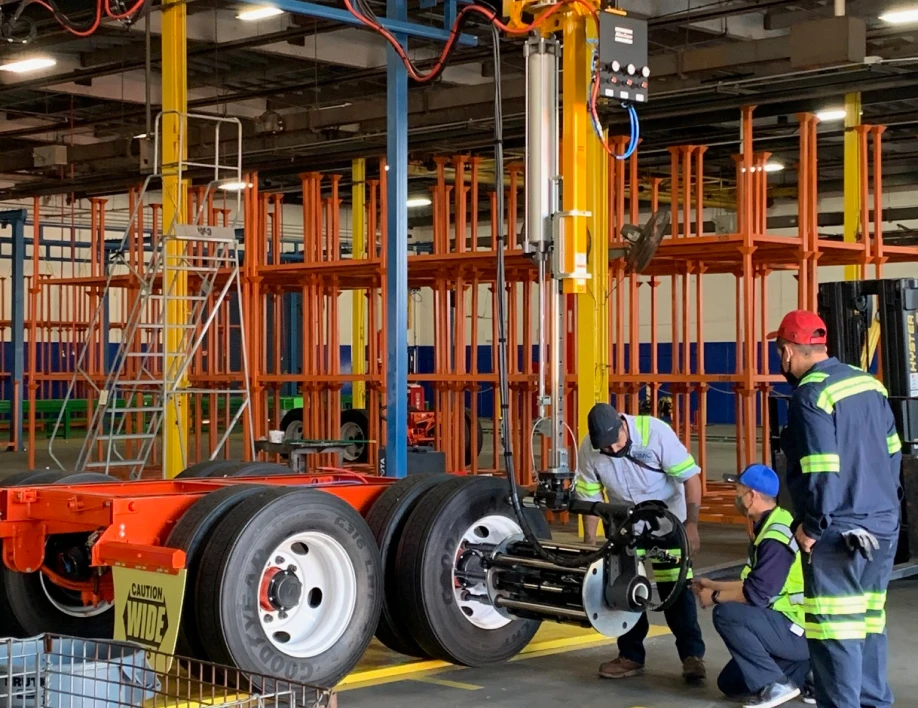

Automotive Manufacturing
Integrated bridge crane systems for automotive assembly lines, parts handling, and maintenance operations requiring seamless workflow integration.
Chemical & Process Industries
Corrosion-resistant bridge cranes for chemical processing, pharmaceutical manufacturing, and other process industries with specialized environmental requirements.
Paper & Pulp Mills
Heavy-duty bridge cranes designed for the demanding environment of paper and pulp manufacturing facilities.
Modular Housing
Achieve precise lifting control and efficient prefabricated component assembly with overhead bridge cranes that streamlined production workflows.
Precast Concrete
Bridge crane systems streamline precast manufacturing operations with heavy-duty lifting solutions for concrete panels, beams, and structural component handling.
Related Products
Frequently Asked Questions
Who is Level Crane Systems?
We’re a California-based company specializing in custom overhead bridge crane engineering and nationwide installation. Our primary focus is delivering exceptional crane projects with precision and expertise.
Do you charge extra for nationwide installation?
No. Our installation teams travel to facilities anywhere in the United States at standard rates with zero travel premiums or geographic surcharges included.
What does “custom crane engineering” mean?
We design overhead crane systems specifically for your exact load capacities, span dimensions, lifting heights, and workflow requirements rather than adapting standardized configurations.
Why choose a project-focused crane company?
We dedicate our core expertise to crane project excellence—custom engineering, precision installation, and seamless commissioning—ensuring your system is optimized for long-term operational success.
How long does a custom crane project take?
Timelines vary by complexity. Our dedicated project focus enables swift execution. We provide clear schedules during assessment and respect your production timelines.
Who handles maintenance after installation?
You choose your service approach—in-house teams, local providers, or our vetted partners. We provide complete documentation and service support throughout California.
What industries do you serve?
Precast concrete manufacturing, modular housing production, steel fabrication, aerospace, automotive, and any manufacturing facility requiring specialized custom overhead crane solutions.
Are your cranes OSHA compliant?
Yes. Every system meets OSHA regulations, ASME B30 standards, and CMAA specifications. We provide complete compliance documentation and load testing certification.
How do I get started?
Contact us for a free facility assessment. We respond within 24-48 hours with expert consultation, transparent pricing, and clear project timelines.
What crane capacities can you engineer?
We design custom overhead bridge cranes from 1-ton to 50+ ton capacities with 10-foot to 100+ foot spans, optimized for your specific requirements.
Let’s Get Started
Ready to Enhance Your
Workstation Productivity?
Our engineering team specializes in designing jib crane solutions that optimize your specific work processes. From ergonomic workstation cranes to heavy-duty industrial installations, Level delivers precision lifting solutions that improve both productivity and safety.
Alternative Contact Methods
Call 800-517-7247
Speak with Jib Crane Specialist
sales@levelusa.com
Direct consultation on workstation optimization and ergonomic solutions
Why Choose Level for Your Jib Crane Project?
Ergonomic Expertise
Specialized knowledge in workplace efficiency and safety
Precision Engineering
Exact specifications for optimal performance
Quality Construction
Durable, low-maintenance designs for long-term value
Safety Integration
Comprehensive safety features and fall protection options
Quick Installation
Minimal facility disruption and rapid commissioning
Comprehensive Support
Installation, training, and ongoing service support
