Advanced Gantry Cranes for Ultimate Versatility
Portable Power. Flexible Solutions. Built to Last.
Level Crane Systems provides gantry cranes from 1 to 40 tons with quick delivery and nationwide installation. Our versatile designs offer mobile lifting solutions for facilities where overhead cranes are not practical. Custom-engineered for your unique requirements.
Benefits
Key Benefits
No Building Modifications
Independent structure requires no facility changes
Quick Deployment
Rapid setup and commissioning for immediate productivity
Maximum Flexibility
Portable options for multiple work locations
Cost Effective
Lower installation costs compared to overhead bridge systems
Overview

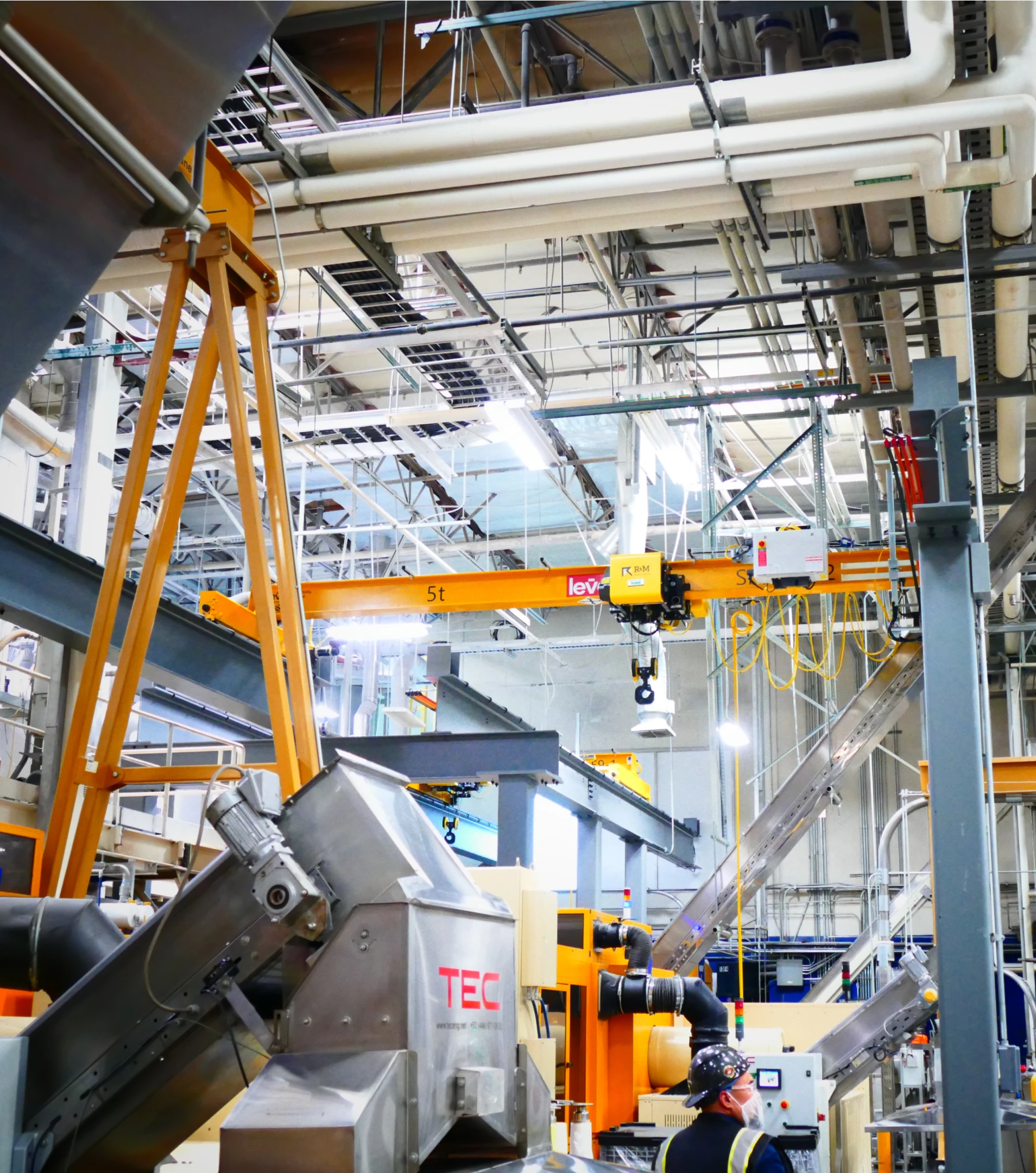

What are Gantry Cranes?
Product Description

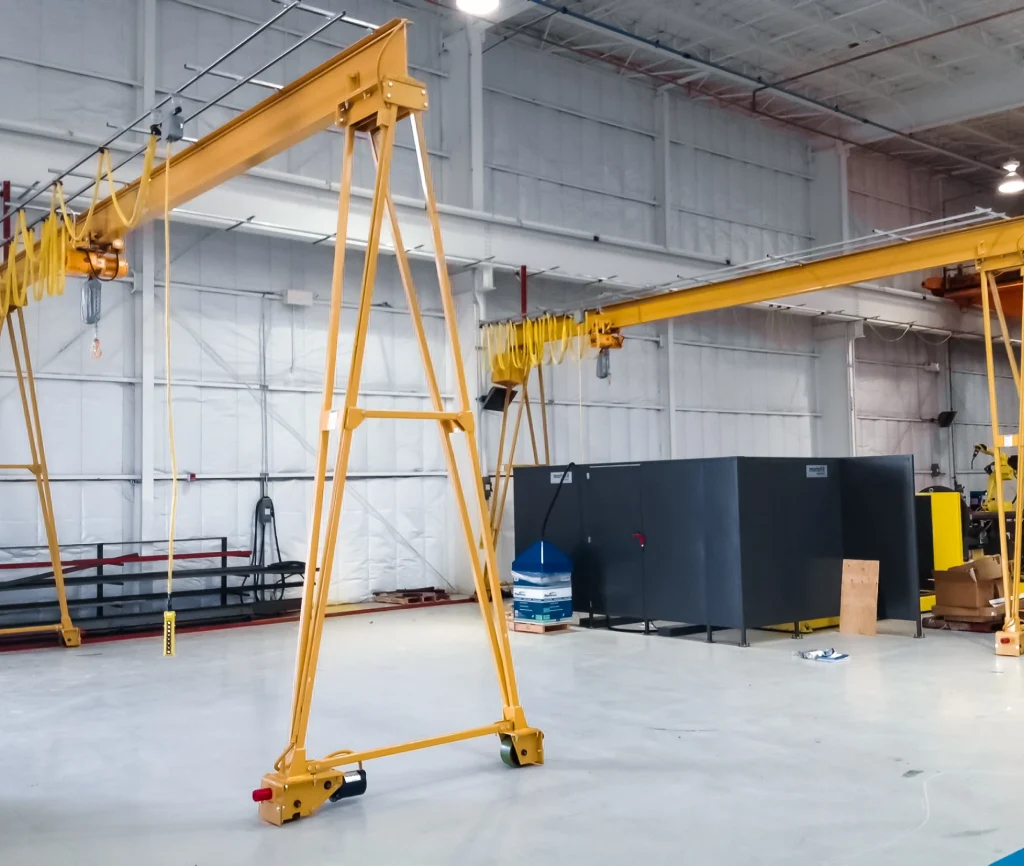

Gantry crane systems are self-supporting overhead lifting solutions that utilize a horizontal beam supported by vertical legs, creating a bridge-like structure that can span work areas without requiring existing building infrastructure. These versatile cranes can be designed as portable units for temporary applications, wheeled systems for flexible positioning, or permanent installations for dedicated work areas.
Why Choose Level Gantry Cranes?
As a nationwide overhead crane supplier, Level specializes in delivering high-quality, custom gantry crane systems with the speed and flexibility that innovative companies demand. We understand the urgency startups face when scaling from prototype R&D to full-scale production, and we’re built to move at your pace.
Our expert installation team travels nationwide with no added travel fees, guaranteeing world-class gantry crane installation at your facility. With decades of engineering expertise and a commitment to responsive service, we deliver gantry crane systems precisely engineered for your unique material handling requirements, exactly when you need them.
Key Features
Structural Design
Self-Supporting Structure
Independent steel framework eliminates need for building modifications or overhead support
Custom Height and Span
Fully customizable dimensions engineered to match your exact facility and operational requirements
Flexible Designs
Available in adjustable height, single-leg, and high-capacity configurations
Mobility Options
Drive Configurations
Manual push and motorized travel options available

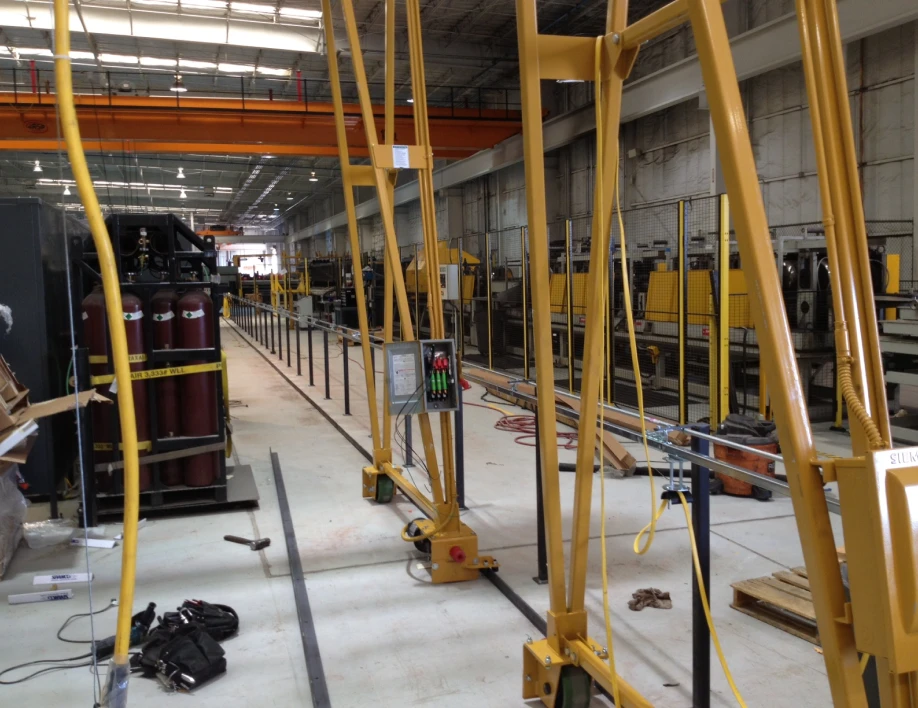

Travel Systems
Available in v-groove, side-guide mounted, and free-roaming options
Speed Selection
Select single, dual-speed, or infinitely variable VFD motion control
Load Handling
Precise Load Control
Variable speed hoists and trolleys for accurate material positioning
Multi-Point Lifting
Dual hoist configurations for handling long or unbalanced loads
Specialized Attachments
Custom below-the-hook devices for specific material handling requirements
Environmental Features
All-Weather Operation
Designed for outdoor use in wind, rain, and temperature extremes
Corrosion Protection
Marine-grade coatings and galvanizing for coastal and industrial environments
Wind Load Resistance
Engineered to meet regional wind load requirements and storm conditions
Specifications Table
Portable Gantry Cranes
Capacity
1-15
tons
1, 2, 3, 5, 7.5, 10, 15 ton
Span
8-40
feet
Adjustable height options
Lift Height
8-35
feet
Fixed or adjustable
Specification
Travel Speed
Trolley Speed
Hoist Speed
Power
Range
Manual or 25-100 FPM
Manual or 25-75 FPM
8 – 20 FPM
110V – 480V
Standard Options
Motorized options available
Electric chain hoist
Single or dual speed

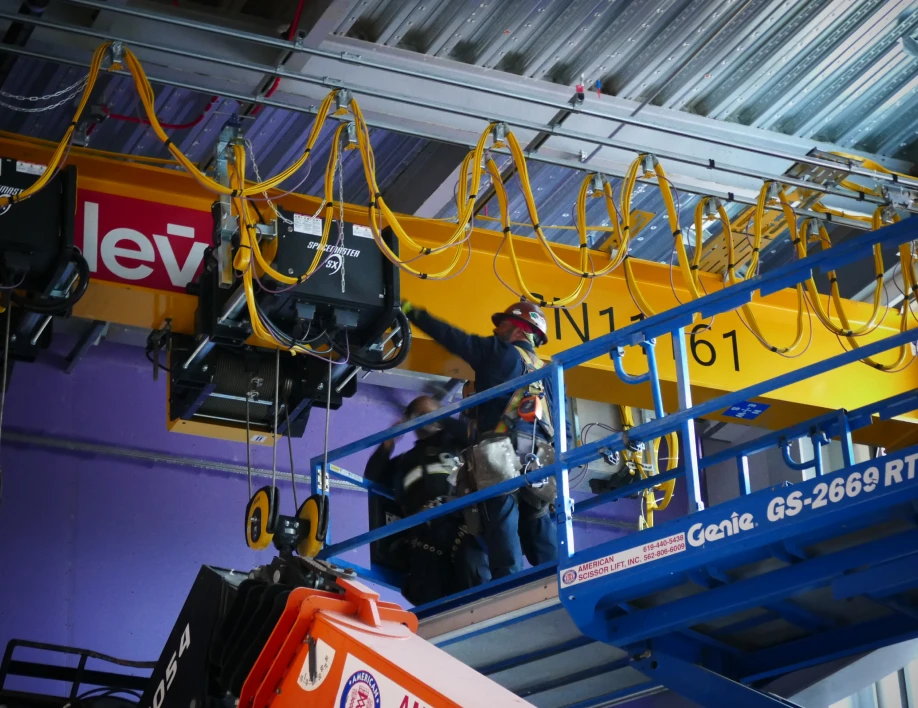

Cord reel or festoon systems
Production Gantry Cranes
Capacity
5-40+
tons
5, 7.5, 10, 15, 20, 25, 40+ tons
Span
10-60+
feet
Custom engineered spans
Lift Height
15-30+
feet
Based on application needs
Specification
Travel Speed
Trolley Speed
Hoist Speed
Guide Type
Range
40-120 FPM
25-120 FPM
3 – 40 FPM
Standard or custom
Standard Options
Variable frequency drive
Independent drive system
Multiple speed options
V-groove, side guide, or free roaming
Specifications Table
Portable Gantry Cranes
Capacity
Range
1 – 15
tons
Standard Options
1, 2, 3, 5, 7.5, 10, 15 ton
Span
Range
8 – 40
feet
Standard Options
Adjustable height options
Lift Height
Range
8 – 35
feet
Standard Options
Fixed or adjustable
Travel Speed
Range
Manual or
25 – 100
FPM
Standard Options
Motorized options available
Trolley Speed
Range
Manual or
25 – 75
FPM
Standard Options
Electric chain hoist
Hoist Speed
Range
8 – 20
FPM
Standard Options
Single or dual speed
Power
Range
110 – 480
V
Standard Options
Cord reel or festoon systems
Production Gantry Cranes
Capacity
Range
5 – 40+
tons
Standard Options
5, 7.5, 10, 15, 20, 25, 40+ tons
Span
Range
10 – 60+
feet
Standard Options
Custom engineered spans
Lift Height
Range
15 – 30+
feet
Standard Options
Based on application needs
Travel Speed
Range
40 – 120
FPM
Standard Options
Variable frequency drive
Trolley Speed
Range
25 – 120
FPM
Standard Options
Independent drive system
Hoist Speed
Range
3 – 40
FPM
Standard Options
Multiple speed options
Guide Type
Range
Standard or custom
Standard Options
V-groove, side guide, or free roaming
Configuration Options
Portable Gantry Cranes

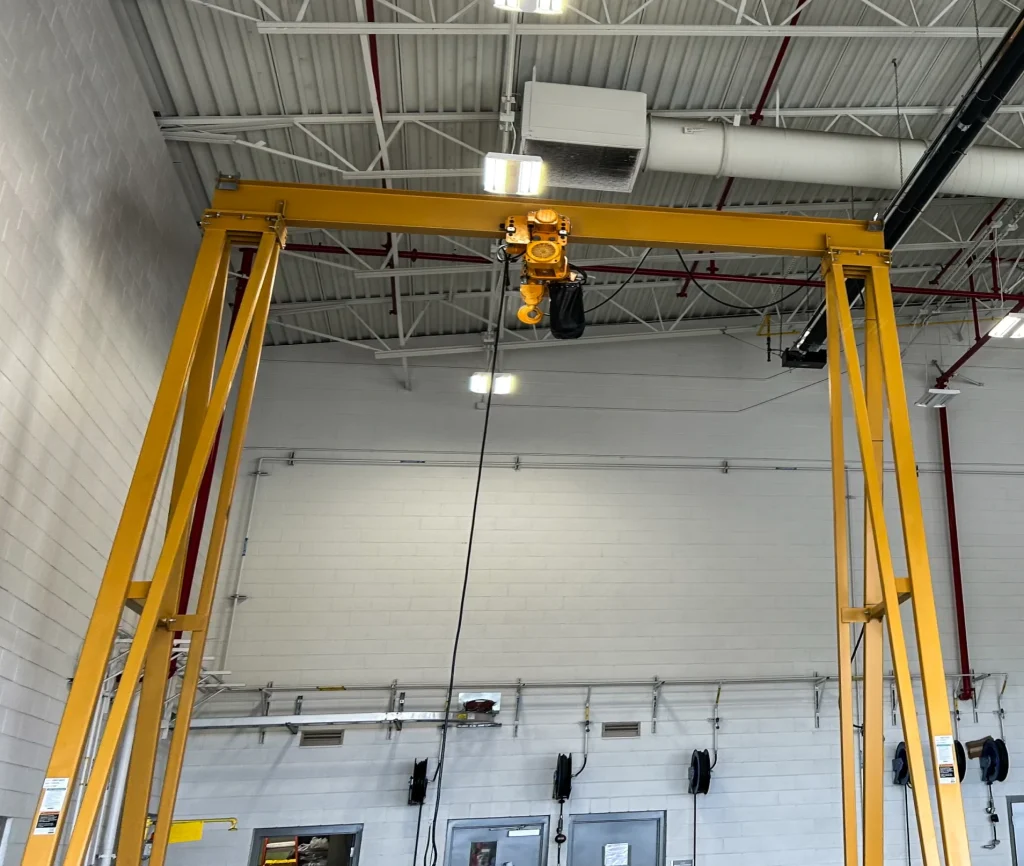

Fixed Height Gantries
- Capacities: 0.5-15 tons
- Spans: 8-40 feet
- Lightweight aluminum or steel construction
- Manual or powered travel options

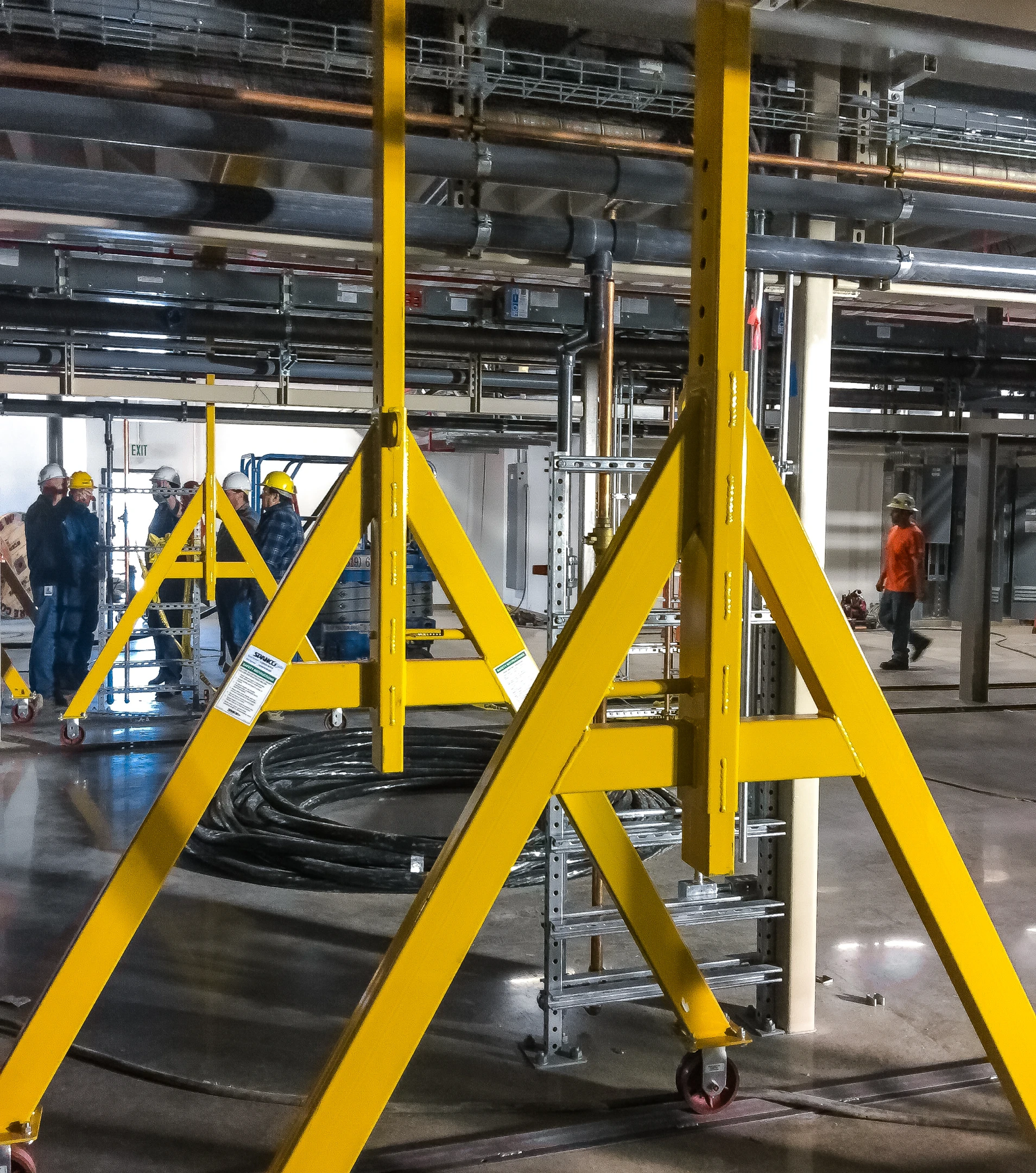

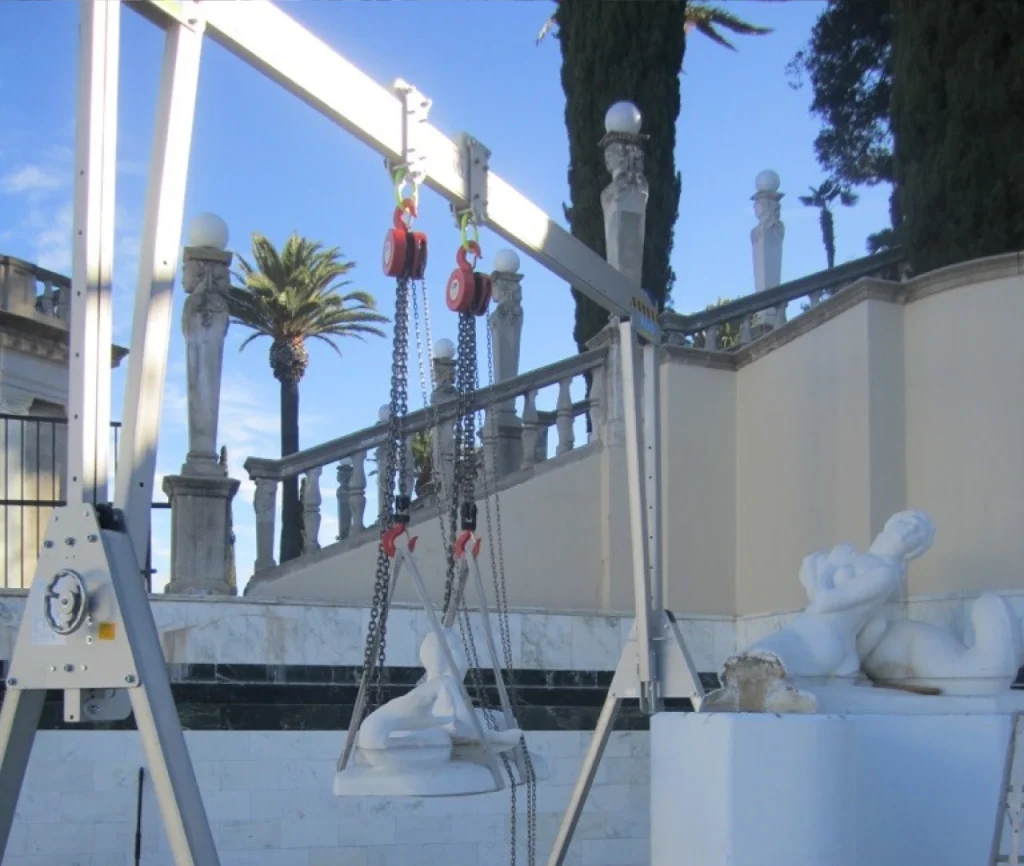

Adjustable Height Gantries
- Capacities: 0.5-10 tons
- Spans: 8-40 feet
- Telescoping or pin-adjustable leg systems
- Enhanced versatility for varying applications
Production Gantry Cranes
Trackless Gantries
- Capacities: 3-15 tons
- Spans: 10-40 feet
- No tracks or side-guides required
- Ideal for flexible facility layouts
Track-Mounted Gantries
- Capacities: 5-100+ tons
- Spans: 15-100+ feet
- Rail-mounted for precise positioning
- Suitable for dedicated work areas
Control Options
Operator Interfaces
- Pendant pushbutton control

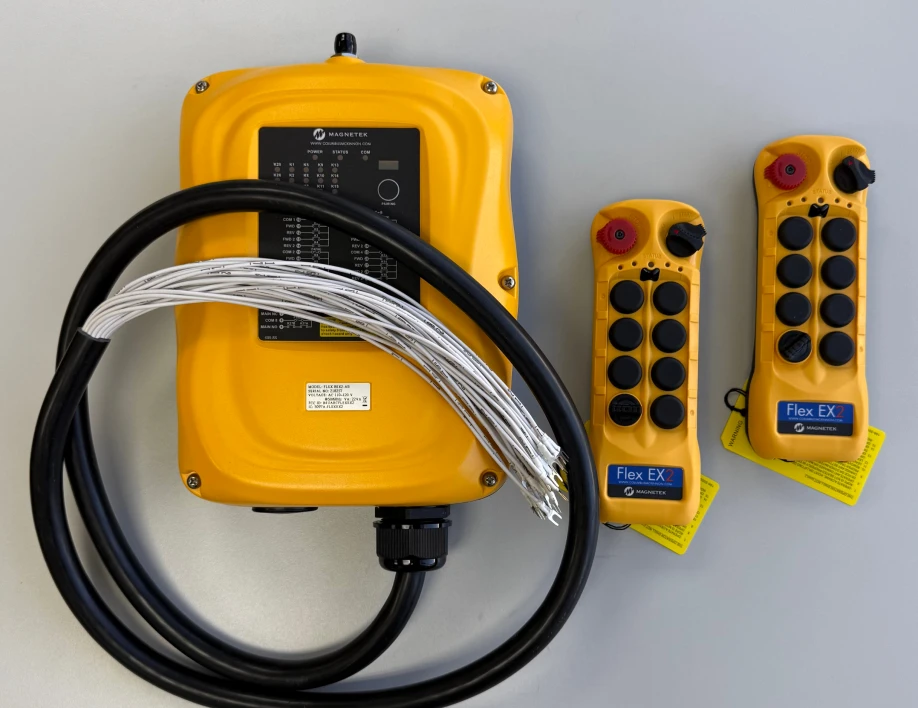

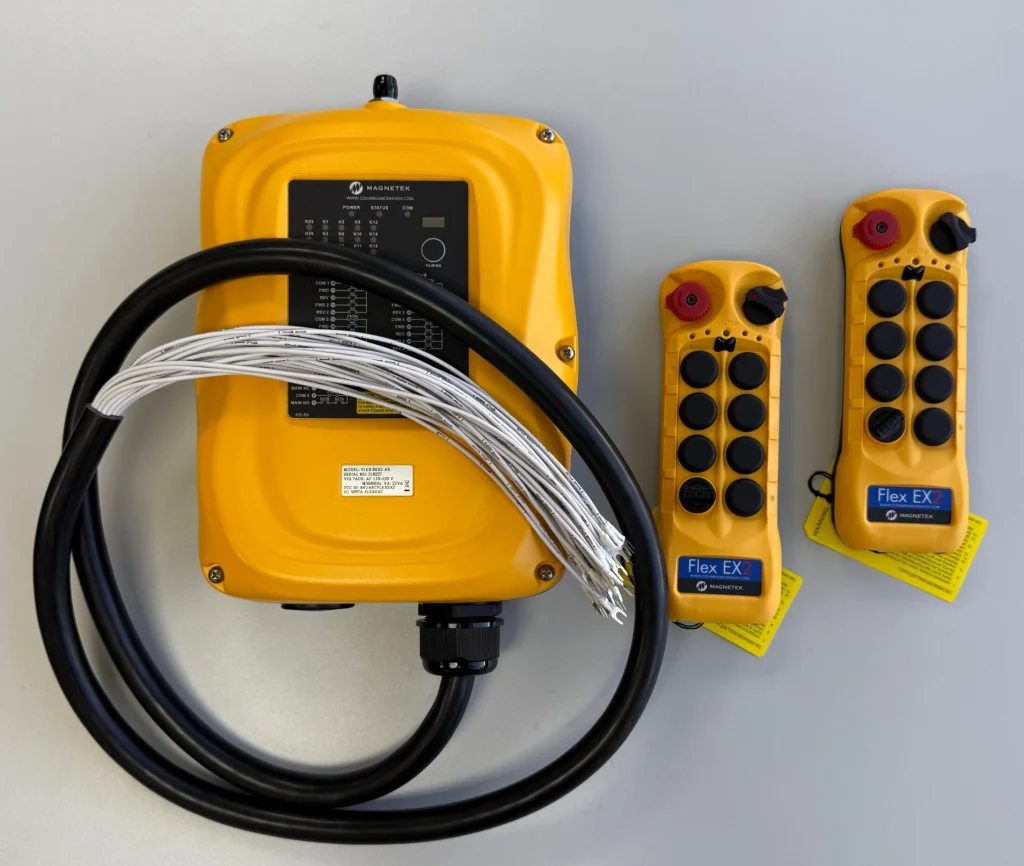

- Radio remote control systems
- Emergency stop systems
- Automated systems for high-volume operations
Drive Systems
- Variable frequency drives (VFD)
- Anti-sway technology
- Load positioning feedback
- Collision avoidance systems
Environmental Packages
Weather Protection
- Corrosion-resistant coatings
- Marine-grade electrical systems
- Wind-resistant designs up to 100+ MPH
- Temperature-rated components (-40°F to +120°F)
Specialized Coatings
- Hot-dip galvanizing for maximum corrosion protection
- Industrial paint systems for chemical environments
- Food-grade finishes for agricultural applications
Why We’re Different
Solutions Focused
Exclusive focus on custom crane project excellence
Rapid Response
Swift execution on your timeline
Nationwide Installation
California engineering with nationwide installation capability
Service Freedom
Complete service independence after commissioning
Travel Included
Zero travel premiums regardless of location
Project Specialists
Specialized project expertise, not service-company generalists
Applications
Industries Served
Manufacturing & Assembly
Precision material handling for production lines, assembly operations, and quality control processes in automotive, aerospace, and general manufacturing facilities.
Steel & Metal Processing
Heavy-duty bridge cranes for steel mills, metal fabrication shops, and processing facilities requiring high-capacity lifting and precise load positioning.
Warehousing & Distribution
Efficient material handling solutions for loading docks, storage facilities, and distribution centers requiring flexible, high-throughput operations.
Power Generation
Specialized bridge crane systems for power plants, including nuclear facilities, requiring precise positioning and enhanced safety protocols.
Aerospace & Defense
Critical lifting applications for aircraft manufacturing, maintenance hangars, and defense contractors requiring precision and reliability.

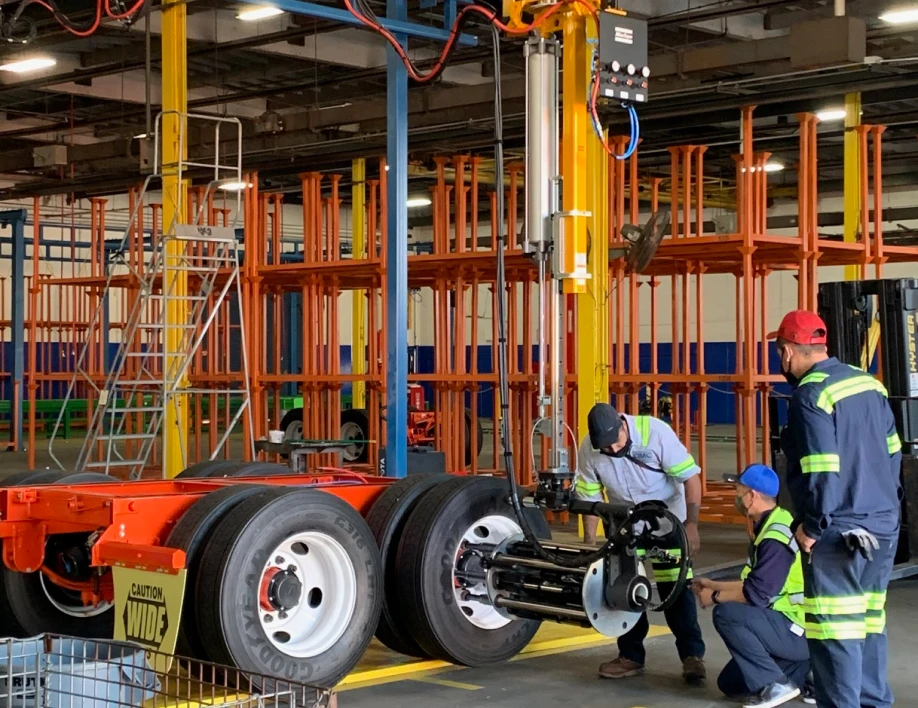

Automotive Manufacturing
Integrated bridge crane systems for automotive assembly lines, parts handling, and maintenance operations requiring seamless workflow integration.
Chemical & Process Industries
Corrosion-resistant bridge cranes for chemical processing, pharmaceutical manufacturing, and other process industries with specialized environmental requirements.
Paper & Pulp Mills
Heavy-duty bridge cranes designed for the demanding environment of paper and pulp manufacturing facilities.
Modular Housing
Achieve precise lifting control and efficient prefabricated component assembly with overhead bridge cranes that streamlined production workflows.
Precast Concrete
Bridge crane systems streamline precast manufacturing operations with heavy-duty lifting solutions for concrete panels, beams, and structural component handling.
Related Products
Frequently Asked Questions
Who is Level Crane Systems?
We’re a California-based company specializing in custom overhead bridge crane engineering and nationwide installation. Our primary focus is delivering exceptional crane projects with precision and expertise.
Do you charge extra for nationwide installation?
No. Our installation teams travel to facilities anywhere in the United States at standard rates with zero travel premiums or geographic surcharges included.
What does “custom crane engineering” mean?
We design overhead crane systems specifically for your exact load capacities, span dimensions, lifting heights, and workflow requirements rather than adapting standardized configurations.
Why choose a project-focused crane company?
We dedicate our core expertise to crane project excellence—custom engineering, precision installation, and seamless commissioning—ensuring your system is optimized for long-term operational success.
How long does a custom crane project take?
Timelines vary by complexity. Our dedicated project focus enables swift execution. We provide clear schedules during assessment and respect your production timelines.
Who handles maintenance after installation?
You choose your service approach—in-house teams, local providers, or our vetted partners. We provide complete documentation and service support throughout California.
What industries do you serve?
Precast concrete manufacturing, modular housing production, steel fabrication, aerospace, automotive, and any manufacturing facility requiring specialized custom overhead crane solutions.
Are your cranes OSHA compliant?
Yes. Every system meets OSHA regulations, ASME B30 standards, and CMAA specifications. We provide complete compliance documentation and load testing certification.
How do I get started?
Contact us for a free facility assessment. We respond within 24-48 hours with expert consultation, transparent pricing, and clear project timelines.
What crane capacities can you engineer?
We design custom overhead bridge cranes from 1-ton to 50+ ton capacities with 10-foot to 100+ foot spans, optimized for your specific requirements.
